    75m / Min Can Body Maker Machine , Can Body Welder 150Kw 600cans / Min

    Ask Lasest Price
    Brand Name : Sunnran
    Price : $35,000.00 - $60,000.00/Pieces
    Certification : CE
    Delivery Time : 150 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    75m / Min Can Body Maker Machine , Can Body Welder 150Kw 600cans / Min

    Tin Can body Making Machine can body welder Can body welding machine
    75m / Min Can Body Maker Machine , Can Body Welder 150Kw 600cans / Min

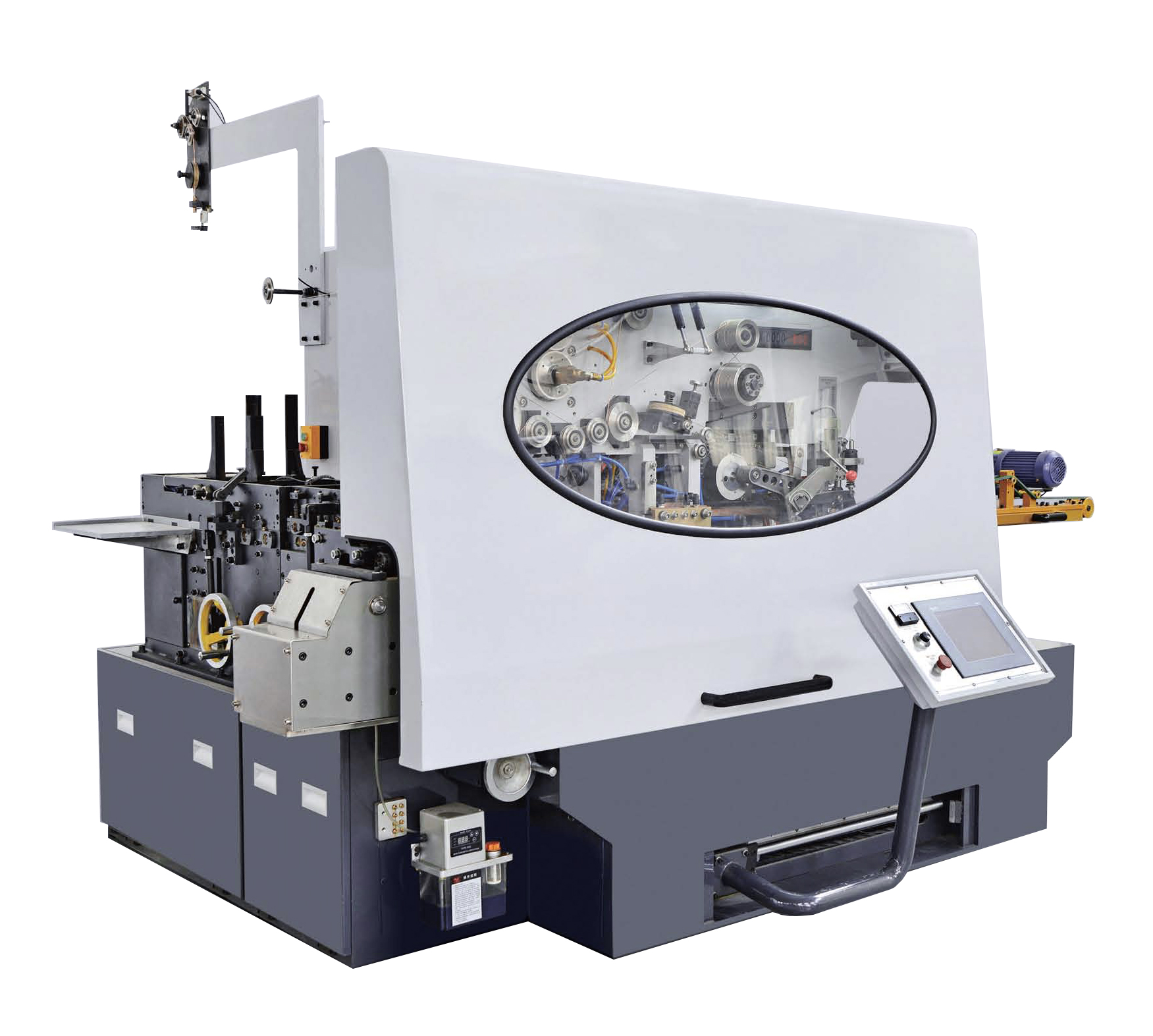

    This can body welder gathers the functions of auto sucking, blank-feeding, tinplate rolling and rounding, pushing and welding. It's operation system is furnished with the HMI touch screen, fault self-analysis and the display. All above realized fully automatic system such as main transmission all adopt with frequency control device, which makes the system more convenient and reliable in regulating and running.
    Capacity:
    Tinplate thickness
    Diam of copper wire
    Welding speed
    Welding frequency
    500 cans/min
    0.16-0.30
    1.38mm or 1.50mm
    9-57m/min
    100-650hz
    Can Dia
    Can height
    Can height
    Overlap
    Transformer Power
    φ52-153
    52-99
    60-320mm
    0.4mm
    150Kw

    Paint can body welding machine

    Paint can body welding machine Adopts sheet upward feeding to avoid double sheet issue.Can add additional storage platform for
    stocking the body blanks to
    enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam.
    Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation.
    After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven
    can be designed to linear or U-shape according to client’s workshop layout.
    75m / Min Can Body Maker Machine , Can Body Welder 150Kw 600cans / Min
    Automatic welder
    Wire speed
    Can diameter
    Can height
    Can material
    Power capacity
    9-24m/Min
    6-24m/Min
    200-260/260-290
    99-180mm
    180-450
    70-330
    Tinplate,Ni-plate,SS
    26Kw
    Internal & external coating machine
    Coating speed
    Can diameter
    Coating width
    Power Consumption
    Power source
    10-35m/min
    52-300
    10-14
    0.6Kwh
    220V
    Induction oven
    Conveying speed
    Heater Qty.
    Power
    Cooling water
    Air source
    9-30m/min
    3 x 2m/Heater
    380V , 50Hz
    >30L/min>400Kpa/cm2<20℃
    Details of welder
    75m / Min Can Body Maker Machine , Can Body Welder 150Kw 600cans / Min
