    End Making Paint Can Lid Production Line Automatic CE Certificate

    Ask Lasest Price
    Brand Name : Sunnran
    Price : $120,000.00 - $180,000.00/Pieces
    Payment Terms : L/C, T/T
    Supply Ability : 30
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    End Making Paint Can Lid Production Line Automatic CE Certificate

    Automatic End making machine-Tin bottom Making Production Line

    Products Description
    Can making machine for square end making
    End Making Paint Can Lid Production Line Automatic CE Certificate
    This line has high efficiency. It saves lots of material for the reason zig-zag feeding. The number of the die can be installed is 2-7 out. This press is equipped with double sheet detector and overload protection to make it more secure and reliable. It is suitable for different components type.
    Model
    GT2A4-120
    GT2A4-120-H
    GT2A4-60
    GT2A4-25
    Normal force
    120T
    120T
    60T
    25T
    Max. stroke
    200
    240
    200
    200
    Max. die loading
    7
    7
    3
    1
    Max. sheet size
    1100*1100
    1100*1100
    1100*1100
    1100*1100
    Max. thickness
    0.4mm
    0.4mm
    0.4mm
    0.4mm
    Total power
    25kw
    25kw
    20kw
    16kw
    Dimension
    3400*1500*2800
    3400*1500*2800
    2700*1300*2700
    2700*1300*2500
    Weight
    14T
    14T
    10.8T
    8T

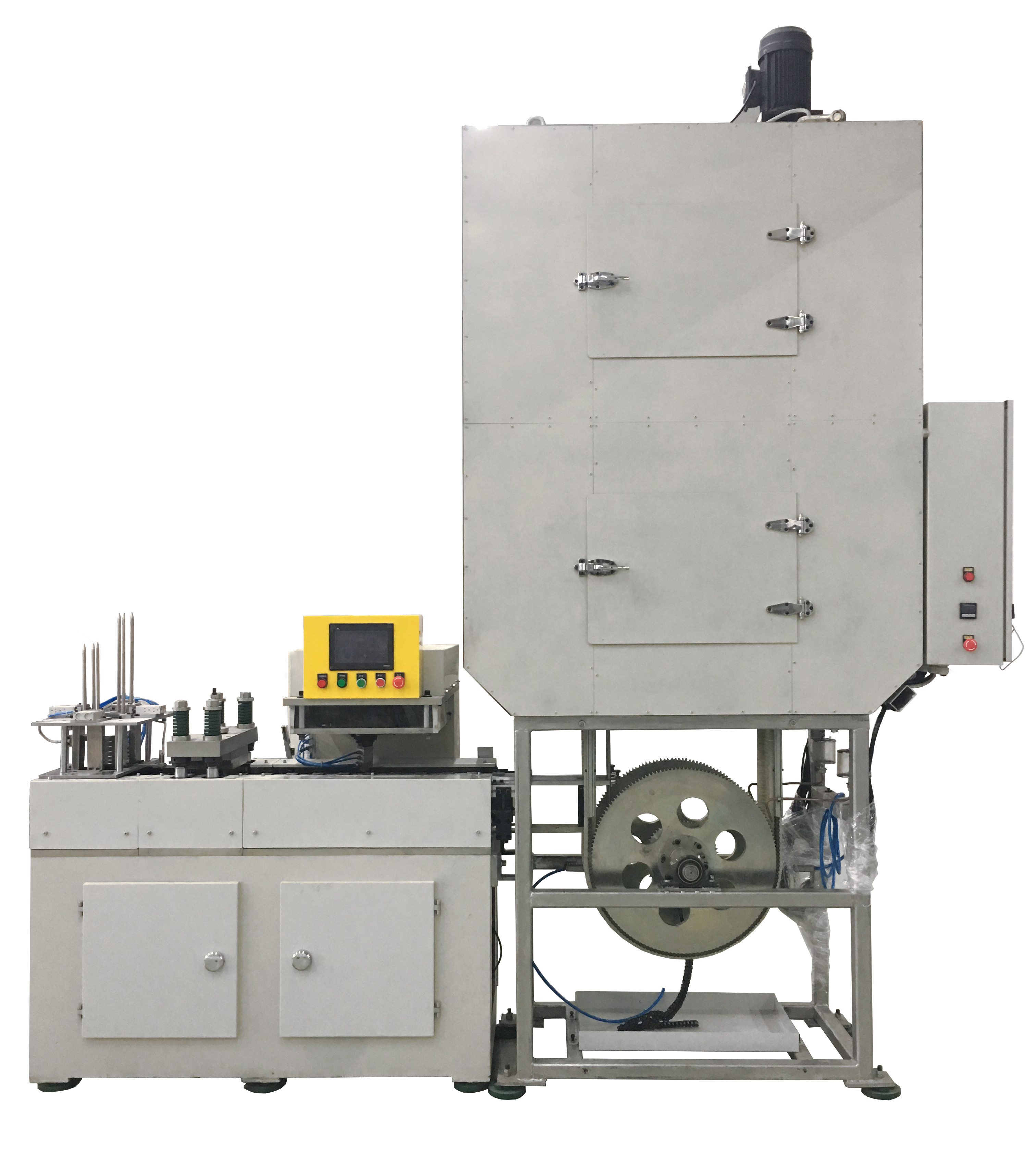

    Rectangular & square end lining machine
    Combined machine for end edge curling,compound lining and curing Its automatic temperature control can adjust oven with best temperature Oven adopts electric heating system End lift-up is driven by screw
    End Making Paint Can Lid Production Line Automatic CE Certificate
    End type
    End size(mm)
    Speed (EPM)
    Machine power
    Square end
    Min.180x180 Max.250x250
    35-60(Single channel)
    14-35Kw
    Rectangular end
    Min.70x58 Max.206x142
    60(Single channel)
    14Kw
    End Making Paint Can Lid Production Line Automatic CE Certificate
    Handle welder
    a.Square/Rectangular end ear lug welder This machine is using Mitsubishi PLC to control machines movement of
    feeding, welding the ear lug on the end.
    Max speed
    Welding voltage
    Air source
    Welding pressure
    38-40CPM
    380V
    6-8Kg
    2-3Kg
